Lithium batteries”, are a class of batteries that use a non-aqueous electrolyte solution with lithium metal or lithium alloy as the anode material. Lithium-ion or Li-ion batteries are rechargeable batteries that utilize Li + ions reversibly embedded in an electronically conducting solid to store energy.

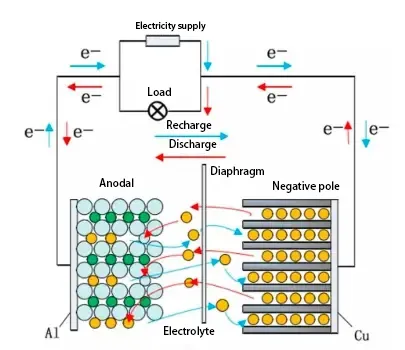

The positive electrode of the battery is generated by lithium ions, and the generated lithium ions “jump” from the positive electrode into the electrolyte, and “crawl” through the electrolyte through the curved holes in the diaphragm, and then move to the negative electrode, where they combine with electrons that have long since traveled to the negative electrode through an external circuit. The reaction at the positive electrode is: LiCoO2==charging==Li1-xCoO2+Xli++Xe(electrons) ●The reaction at the negative electrode is: 6C+XLi+Xe=====LixC6During the process of charging, Li+ is detached from the positive electrode, LiCoO2, enters into the electrolyte, and then moves to the negative electrode under the action of the additional external electric field of the charger, and enters into the negative electrode made of graphite or coke C, in order of magnitude. The negative electrode is composed of graphite or coke C, and LiC compounds are formed at the negative electrode.2. Discharge process of lithium battery
When discharging the electrons and Li+ are acting at the same time, and the direction is the same but the path is different, the electrons from the negative electrode through the external circuit to the positive electrode; lithium-ion Li+ from the negative electrode “jumped into” the electrolyte, “climbed” through “the diaphragm on the curved hole, “swimming” to reach the negative electrode, “swimming” to reach the negative electrode, “swimming” to reach the negative electrode. “Swimming” to reach the positive pole, and has a long run over the combination of electrons. The capacity of the battery we usually refer to is the discharge capacity.

10400, 14500, 16340, 18650 Battery Cell, 21700 Battery Cell, 26650 Battery Cell, 32650 Battery Cell and so on.

Pros: individual consistency is better
Safe not easy to explode, mature technology, low cost.
High energy density
Small internal resistance
Wide range of use (laptop computers, handheld walkie-talkies, portable disk players, instrumentation equipment, audio equipment, model airplanes, laptop computers, digital video cameras, lighting equipment, children’s toys enterprise products, pneumatic tools, and other electronic equipment).

Cons: Cylindrical lithium battery individual system software grade high
Cylindrical lithium battery cell characteristics of the high probability of alienation
Small space for energy density increase

A Battery Management System (BMS) is an electronic system used to monitor, protect, and manage the performance of a battery.

Functions:
Charge Monitoring: monitors the battery charge level and alerts when the charge level falls below a predetermined threshold.
Voltage Monitoring: Monitors the battery voltage to ensure proper battery operation.
Temperature Monitoring: Monitors the battery temperature to ensure that the battery is not overheated or overcooled.
Overcharge/Discharge Protection: Prevents the battery from being overcharged or discharged to prevent battery damage.
Overcurrent Protection: Prevents the battery from overcurrent to prevent battery damage.

Life expectancy is a complex issue that is affected by a variety of factors, including battery type, manufacturing quality, conditions of use, charging method, and ambient temperature. In general, the life of an EV battery is usually measured in years or number of charge cycles. Typically, batteries will last between 10 and 20 years with between 3,000 and 8,000 charge cycles.

Yes, LiFePO4 batteries are safer than Li-ion ternary batteries, and they also have the following advantages:
Long life: the cycle life of LiFePO4 batteries is generally more than 2000 times, which is a long time to use.
High-temperature resistance: lithium iron phosphate battery thermal peak can reach 350 ℃ -500 ℃, a wide range of operating temperatures.
Environmental protection: lithium iron phosphate batteries are non-toxic, non-polluting, with a wide range of raw material sources, and inexpensive.

Lithium batteries can be installed in any position (whether you need to front and back, upside down or sideways) and will not affect the performance of the battery.

LiFePO4 batteries are smaller than lead-acid batteries in terms of weight, weighing only 1/3 of the weight of lead-acid batteries (at the same voltage and capacity).

The usage time of the battery is mainly determined by the Ah, the larger the Ah the longer the usage time, when choosing a high-capacity battery, you need to pay attention to whether it can be perfectly stored in the device.

Lithium batteries are safe for humans and the environment when used normally. However, if lithium batteries are not used or handled correctly, they can be harmful to humans and the environment.

This depends on whether the battery you buy supports fast charging, usually lithium iron phosphate batteries can be charged within 4-6 hours.

Temperature has the greatest impact on the charge/discharge performance of a battery. The electrochemical reaction at the electrode/electrolyte interface is related to the ambient temperature, and the electrode/electrolyte interface is considered to be the heart of the battery. If the temperature drops, the reaction rate of the electrode also drops. Assuming that the battery voltage remains constant, the discharge current decreases, and the power output of the battery also decreases. The opposite is true if the temperature rises, i.e. the power output of the battery rises. Temperature also affects the transfer rate of the electrolyte. A rise in temperature speeds up the transfer, a fall in temperature slows down the transfer, and the battery charging and discharging performance is also affected, but too high a temperature, more than 45°C, will disrupt the chemical balance within the battery, leading to side reactions.

The effect of a partial state of charge on Li-ion batteries varies from model to model, but in general, a prolonged partial state of charge may affect battery life and performance. Regular full charging can help mitigate this effect.

Lithium Iron Phosphate batteries can usually be safely discharged to 80-90% SOC (State of Charge), but the optimal depth depends on the manufacturer’s recommendations. Over-discharging may damage battery life.

The usable capacity of a battery typically decreases as the discharge rate increases. High discharge rates may cause the internal resistance of the battery to rise, resulting in increased energy loss.

Please take discarded lithium-ion batteries to a specialized battery recycling facility or relevant collection point. Avoid putting them in the trash or incineration facilities.

Place your batteries in a dedicated battery recycling box or bag to prevent short-circuiting or damage. Then, take them to your local battery recycling site or designated recycling facility.

Lithium-ion batteries can be a fire risk and should be disposed of safely through a specialized battery recycling system. Placing them in municipal or household recycling bins may result in unsafe waste disposal.

Recycling lithium-ion batteries helps to reduce the demand for finite resources, avoiding the release of toxic substances into the environment while reducing the exploitation of natural resources. Proper recycling also helps to minimize the potential harm to the environment from discarded batteries.

Lithium-ion batteries are typically composed of lithium salts, cathode materials (e.g., oxides), anode materials (e.g., graphite), electrolytes, and conductive polymers.

Professional battery recyclers typically recover valuable materials from lithium-ion batteries, including lithium, cobalt, nickel, aluminum, and other metals. These materials can be used to produce new batteries or other products through proper processing and recycling.

When lithium-ion batteries are not in use, it is recommended that they be stored in a cool, dry place and that the batteries be in a partially charged state rather than a fully charged or fully discharged state. Avoid prolonged storage in extreme temperature environments.

A swollen battery can be caused by overcharging, over-discharging, high temperatures, or battery aging. You should stop using a swollen battery immediately and consult a professional technician or the equipment manufacturer for advice. Do not attempt to force the use of an expanded battery as this may cause safety issues.

Lithium-ion deep-cycle batteries are typically designed for cycling applications where frequent deep discharges and recharges are common, such as solar energy storage systems or electric vehicles. They offer longer life, better cycling performance, and higher energy density for scenarios that require frequent cycling.

Li-Ion batteries can typically deliver high discharge currents and can therefore be used to jump-start vehicles in certain situations. However, please take care to ensure that the LiPo battery is compatible with the vehicle’s starting system and follow the manufacturer’s recommendations.

Connecting lithium batteries in parallel with AGM (Absorbed Glass Fiber) batteries may cause charging and discharging mismatches as they have different charging and discharging characteristics. It is best to only connect batteries of the same type, same specifications and same condition in parallel to avoid potential problems.

When using a car charger to charge lithium deep cycle batteries, make sure that the charger is capable of delivering the proper voltage and current, and that it meets the charging requirements of lithium batteries. Using a charger designed for lithium batteries is the best option.

It is best not to mix different types of battery chargers as they have different charging characteristics. Use a charger specifically designed for lithium deep-cycle batteries to ensure safe and efficient charging.

Overcharging can lead to overheating, damage, or even safety issues with lithium batteries. Use a charger that meets the specifications and make sure the charging voltage and current are within the battery specifications.

Yes, it is possible to use solar panels to charge lithium deep-cycle batteries. Ensure that the solar charge controller is compatible with the lithium battery and that it is charging within a safe voltage and current range.

Avoid complete discharge. Lithium deep cycle batteries begin to suffer damage at less than 20% charge. It is best to charge the battery when the charge level is below 50%.
Avoid overcharging. Lithium deep cycle batteries begin to suffer damage when they reach 100% charge. It is best to stop charging when the battery reaches 80%.
Store the battery in a cool, dry place. Lithium deep-cycle batteries age faster at high temperatures.
Do not expose the battery to extreme temperatures. Lithium deep-cycle batteries lose capacity and life faster at extreme temperatures.

Lithium deep cycle batteries can be used in a variety of applications including:

• Lighter Electric Vehicle Battery
• Electric bike battery
• Electric scooter battery
• Electric citycoco battery
• Electric skateboard battery
• E rickshaw powered battery
• Electric cargo bike battery
• Lithium motorcycle battery
• Lithium golf cart battery manufacturer
• Electric Hoverboard Battery

• Energy Storage Battery
• Powerwall battery
• Server rack lifepo4 battery
• Telecom battery

• marine battery
• Electric outboard motor battery
• Trolling motor battery
• Fish finder battery

• Industrial battery

• Electric truck battery
• Tramcar lithium battery
• Parking air conditioner lithium battery
• Mining car lithium battery
• Power Tools Lithium Battery
• Lawn mower lithium battery
• Lithium polymer battery drone
• Garage door opener battery
• Farm equipment battery
• Vacuum Battery Factory
• Robot Battery Manufacturer

• Solar battery
• Portable Power Station
• Lithium racing battery
• GPS lithium battery
• Security camera battery
• Solar street light battery

• Medical battery
• Electric wheelchair lithium battery
• Hearing aid battery

• Emergency Battery

• Emergency light battery
• UPS lithium battery
• Elevator battery backup
• Alarm system battery

• Battery Function
• Low temperature battery
• High rate battery
• Bluetooth lithium battery

• High energy density
• Lightweight
• Small size
• Long service life
• Low self-discharge rate
• Easy maintenance

Yes, the performance of lithium batteries deteriorates when they are exposed to cold. This is because lithium ions move slower at low temperatures, resulting in a reduction in the battery’s discharge capacity. In cold weather, lithium batteries can lose up to 20% of their capacity.

The reason why the battery stops working a few seconds after high current consumption may be:

• The capacity of the battery is not sufficient to support high current consumption.
• The voltage of the battery is too low to drive a device with high current consumption.
• The battery has a poor connection that prevents the current from flowing properly.
• The internal impedance of the battery is too high, resulting in the battery not being able to supply enough current.
• The temperature of the battery is too high, resulting in degradation of the battery’s performance.

Most lithium deep-cycle batteries are waterproof, but not all are. Always check the specifications of your battery before purchasing it to ensure that it is waterproof.

Yes, but it needs to be done by a professional. The BMS board is part of the battery management system and is responsible for charging and discharging the battery. If the BMS board is damaged, the battery may be damaged. Therefore, always consult the battery manufacturer or a qualified battery technician if the BMS board needs to be turned off or replaced.

Yes. Lithium deep-cycle batteries generate more heat during charging and discharging. This is because lithium batteries have a lower internal impedance, which causes the battery to generate more heat during charging and discharging.

Lithium deep cycle batteries do pose a fire risk, but this risk is very small when used properly. Lithium batteries can catch fire or explode when overcharged, over-discharged, short-circuited, or damaged. Therefore, when using lithium deep cycle batteries, always follow the battery manufacturer’s instructions and avoid overcharging, overcharging, short-circuiting, or damaging the battery.

No. Lithium-ion deep cycle batteries cannot be disposed of like regular trash because they contain toxic chemicals. Be sure to dispose of the batteries safely and by local regulations.

You can take your deep-cycle lithium batteries to your local battery recycling center for recycling. Be sure to check with your local government or battery manufacturer for battery recycling centers in your area.

Yes, but please note that the performance of lithium batteries decreases in cold weather. Lithium batteries may lose up to 20% of their capacity in cold weather. Therefore, be sure to minimize battery use in cold weather or use a heating device to keep your battery warm.

Lithium batteries require a specialized charger for charging. Always use the charger and settings recommended by the battery manufacturer. Using an unsuitable charger or settings may damage the battery.

When storing lithium batteries for off-season storage, be sure to fully charge the batteries and store them in a cool, dry place. Do not store batteries in hot or cold environments!

LiFePO4 batteries outperform other types of lithium-ion batteries at low temperatures. Even at temperatures as low as -20 degrees Celsius, LiFePO4 batteries maintain over 80% of their capacity.

• Do not mix lithium batteries with other types of batteries.
• Do not store lithium batteries with metal objects.
• Do not expose the lithium battery to direct sunlight or high temperatures.
• Do not immerse the lithium battery in water or other liquids.
• Do not drop or hit the lithium battery.
• Do not disassemble or modify the lithium battery.

No, LiFePO4 batteries are safer than lead-acid/AGM batteries. LiFePO4 batteries do not produce toxic fumes like lead-acid/AGM batteries and do not experience thermal runaway.

Yes, lithium-ion batteries are safe. Lithium-ion batteries are one of the safest and most reliable batteries available. Lithium-ion batteries do not produce toxic fumes like lead-acid batteries and do not suffer from thermal runaway.

Yes, there is a maximum battery discharge temperature of 140°F (60°C). If the battery temperature exceeds this temperature, the battery may be damaged.

Yes, you need to protect the battery from water. The battery is not waterproof and may be damaged if it is submerged in water.

You need to use spacer batteries when you need to use different types of batteries in your battery pack. Spacer batteries prevent different types of batteries from coming into contact with each other, thus preventing damage to the batteries.

Lithium-ion batteries can be mounted in any orientation, while lead-acid batteries cannot.
Lithium-ion batteries are lighter in weight, so they are easier to install.
Lithium-ion batteries last longer, so you don’t have to replace them as often.

Yes, but you will need to use a DC-DC converter to reduce the voltage.

• Lithium-ion batteries do not require maintenance.
• Do not allow the lithium-ion battery to become fully discharged.
• Do not expose the lithium-ion battery to extreme temperatures.
• Check the battery terminals for looseness or corrosion every few months.

Yes, you should always clean the terminals and/or lithium terminals to prevent corrosion.
You can clean the terminals and/or lithium terminals with a soft cloth and soapy water.

You can use the CAN BUS cable to read battery information from the BMS.
The CAN BUS cable is connected to the CAN BUS port on the BMS.
You can use the CAN BUS reader software to read battery information.

The battery is maintenance free, but you should check the terminals regularly for signs of corrosion. You should also check the battery voltage to make sure it is in the correct range.

A short circuit fault is a fault where the positive and negative terminals in a battery are connected directly together, causing the battery to discharge rapidly. This is a very dangerous condition that can cause the battery to overheat or even explode. Recovery is a fault where a short circuit is detected in the battery and the BMS disconnects the battery to prevent further damage.

Lithium-ion batteries must be packaged in a package that complies with the UN 38.3 standard. This standard specifies that the batteries must be packaged in strong, leak-proof containers that can withstand vibration and shock during transportation.

Lithium-ion batteries should be stored in a cool, dry place. The temperature of the battery should not exceed 45°C.

At 25°C, lithium-ion batteries can be stored for up to one year. At lower temperatures, batteries can be stored for longer periods.

Lithium-ion batteries are self-discharging, but at a very low rate. At a temperature of 25°C, lithium-ion batteries self-discharge by about 2% per month. Therefore, storing a battery in a shopping cart for several months will not cause any damage to the battery.

Thermal runaway is a rapid increase in battery temperature. This can be caused by a number of factors, including overcharging the battery, short-circuiting the battery, or exposing the battery to extreme temperatures. Thermal runaway can lead to a battery fire or explosion. To detect and mitigate thermal runaway, a battery management system (BMS) can be used, which monitors the temperature of the battery and takes action to protect the battery if the temperature becomes too high.

An active BMS uses sensors and electronics to monitor and control the battery.
A passive BMS uses simple mechanical devices to protect the battery.

A BMS protects the battery from overcharging, over-discharging and short-circuiting.
A BMS extends the life of the battery.
A BMS improves battery safety.

If the BMS fails, the battery can be overcharged, over-discharged, or short-circuited.
This can cause the battery to catch fire or explode.

LiFeP04 batteries use more expensive materials.
The manufacturing process for LiFeP04 batteries is more complex than other batteries.

Connecting batteries in series increases the voltage of the battery.
Connecting batteries in parallel increases the capacity of the battery

Ah is an abbreviation for Ampere-hour, a unit of measurement of battery capacity.
mAh is an abbreviation for milliampere hour, also a unit of measurement of battery capacity.
1Ah = 1000mAh.

How long a 100 amp hour battery lasts depends on the discharge current of the battery.
For example, if the battery is discharged at 1 amp, it will last 100 hours.
If the battery is discharged at 2 amps, it will last 50 hours.

AGM batteries usually have the words “AGM” or “Absorbed Glass Mat” on the cover.
AGM batteries are usually heavier than regular lead-acid batteries.
AGM batteries typically have a lower internal impedance than regular lead-acid batteries.

Low Temperature Series batteries use a special electrolyte that maintains fluidity at low temperatures.
This allows the batteries to function properly even at low temperatures.

The heating element is a resistor that generates heat when current is passed through it.
When the battery is at a low temperature, the heating element heats the battery to keep it warm.

How long it takes the heating element to warm the battery to a safe temperature depends on the size of the battery, the temperature of the battery and the power of the heating element.
Generally, the heating element can heat the battery to a safe temperature within a few minutes.

Yes, the heating element will also keep the battery warm during discharge.
This is because the battery also generates heat during the discharge process.
The heating element distributes the heat generated by the battery to the battery’s case, keeping the battery warm.

The amount of current consumed by the heating element depends on the power of the element. Current (A) = Power (W) / Voltage (V). To determine the exact current draw, you need to know the power and voltage of the heating element.

Whether cryogenic batteries can be used on board depends on the environmental conditions and equipment requirements on board. Cryogenic batteries generally perform better at lower temperatures, but you need to make sure that the battery’s voltage rating, capacity, and applicable temperature range meet the requirements on board.

It is possible to connect cryogenic batteries in series/parallel, but you need to make sure that the voltage and capacity of the batteries match before making a decision. Connecting in series increases the voltage, while connecting in parallel increases the capacity.

The extent to which a shunt-based battery gauge is affected by heating during the charging cycle depends on the design of the gauge and the temperature compensation feature. Heating may affect the accuracy of the meter, so it is important to select a meter that is suitable for the environmental conditions on board.

The ability of your existing battery gauge to provide an accurate state of charge for lithium batteries depends on the type and specification of the gauge. Lithium batteries have specific charging and discharging characteristics, so it is best to choose a meter designed specifically for lithium batteries to ensure an accurate state of charge measurement.

There are international standards, such as IEC 62133 and UN38.3, used to evaluate and test the safety performance of lithium batteries. These standards include requirements for battery structure, performance, temperature range, electrical characteristics, and so on.

The rules for testing lithium batteries usually include capacity test, cycle life test, temperature performance test, etc. to ensure that they meet the relevant safety and performance standards.

Packaging rules for lithium batteries involve requirements for packaging the battery during transportation and storage to prevent damage and reduce potential safety risks.

Thermal runaway is a condition in which a battery warms up excessively during operation for a variety of reasons that cannot be controlled. This can lead to a buildup of heat in the battery, increasing the risk of a hazardous event.

Lithium batteries may be considered hazardous waste at the end of their useful life because they contain hazardous substances. Therefore, proper disposal and recycling is important.

Universal waste does not normally cover batteries containing toxic or hazardous substances. Therefore, batteries should be properly segregated and disposed of to avoid potential hazards to the environment and health.

Waste management of lithium batteries is usually regulated by relevant legislation and requires proper segregation, storage, transportation and disposal. Specific requirements may vary from region to region.What are the federal regulations for generators of very small quantities of hazardous waste batteries?

For generators of very small quantities of hazardous waste batteries, they may need to comply with the U.S. Environmental Protection Agency’s (EPA) Hazardous Waste Management System (RCRA) regulations.

The household hazardous waste exemption may allow individuals to include small quantities of household-generated waste batteries in free collection and disposal services. However, specific regulations may vary by region.

Electric vehicle batteries are generally not considered household hazardous waste and may require special handling and recycling due to their large size and complex chemical composition.

These types of batteries may need to be managed under special waste handling procedures to ensure safe handling and recycling.

Best management practices include storing in fireproof containers, avoiding physical damage, regularly checking the condition of the batteries, and ensuring proper ventilation.

Battery handlers may be permitted to perform activities such as waste sorting, packaging, storage, transportation, and disposal, subject to compliance with applicable regulations.

This may depend on region-specific regulations. Shredding batteries may have environmental and safety implications and will need to comply with the relevant regulations.

When a battery is determined to be hazardous waste, the universal waste standard may no longer apply.

It is necessary to look specifically at local regulations, but if a battery recycler handles hazardous waste, the appropriate RCRA permit may be required.

RCRA regulations need to be followed and may require special equipment and facilities to ensure safe handling.

Lithium batteries are generally considered hazardous waste, but specific requirements may vary by region.

Waste lithium batteries may no longer be considered hazardous waste when they no longer meet the definition of hazardous waste after proper treatment and recycling.

Waste lithium batteries often require special handling and recycling procedures to ensure safe and environmentally sound disposal.
