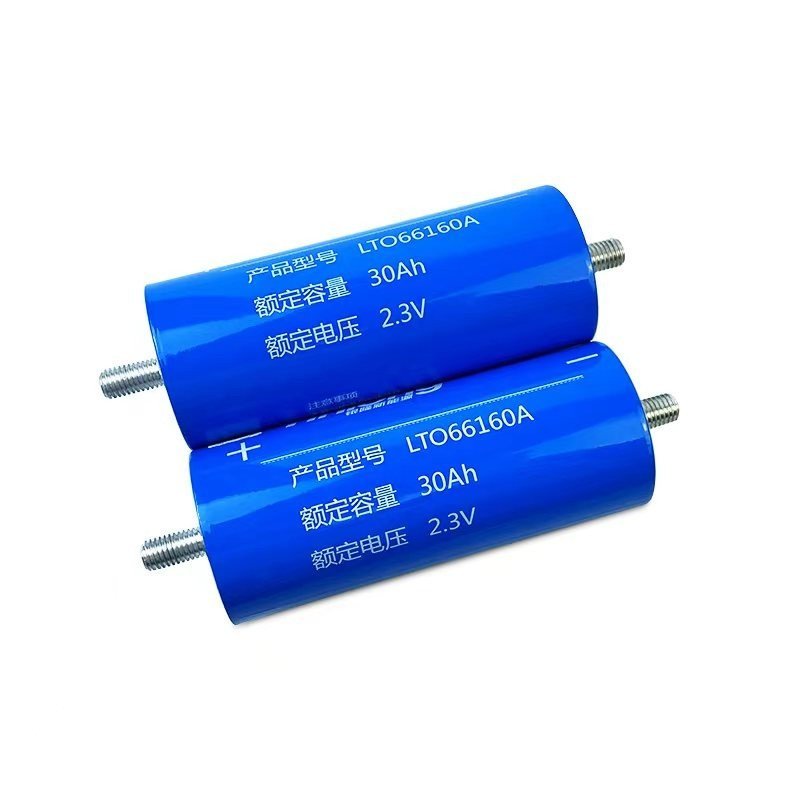

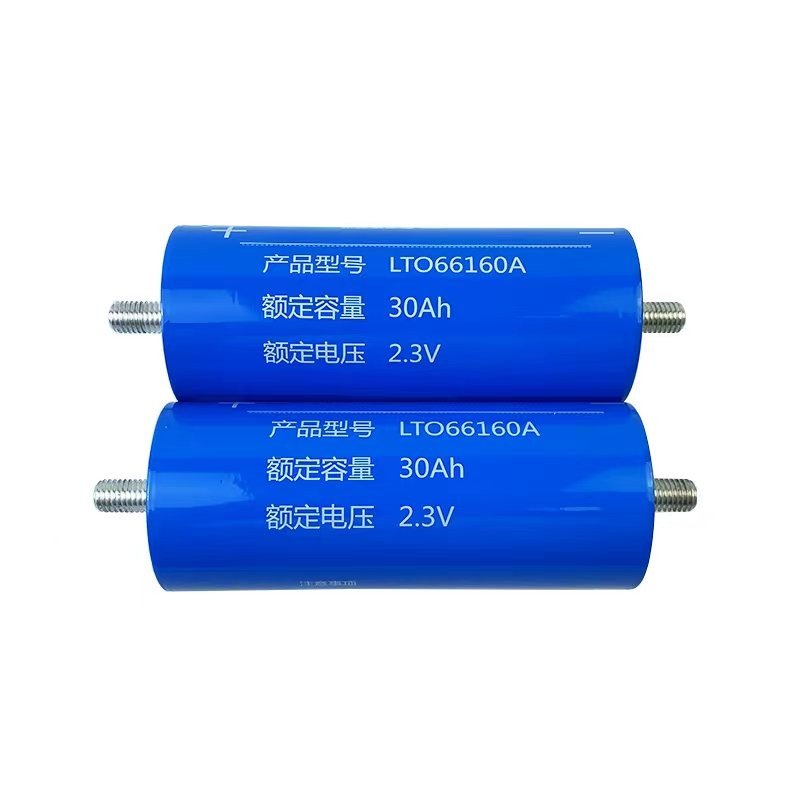

Keheng factory directly supplies YinLong 30Ah LTO66160 Lithium Titanate Battery Cells. Wholesale OEM custom.

Specification

Brand: Grade a 100% new YinLong

Material Science: The lithium-titanate-oxide (LTO)

Model: LTO 66160

Nominal capacity: 30 Ah

Nominal voltage: 2.3 V

Recommended charging voltage: 2.8V

Recommended discharge voltage: 1.5V

Cycle life: ≥25000 Cycles

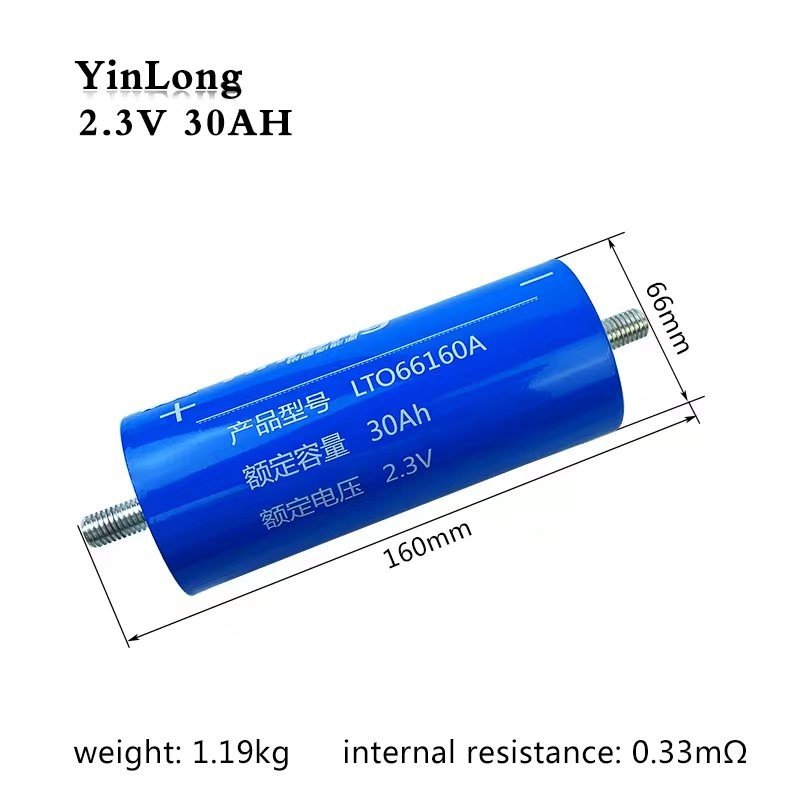

Dimensions: 66*160mm

Terminal: M12

Weight: Approx. 1.24kg

Operating temperature:

Charging: -50℃~60℃

Discharging: -50℃~60℃

LTO Battery Cells Application

LTO Batteries have Wide Applications, Super Capacity, widely applied for energy storage & Power Battery Pack, Used in Engine starting batteries, electric bicycles/motorcycles/scooters,

golf trolley/carts, power tools..UPS, Solar and wind power system, RV, caravan…

Performance comparison of lithium titanate batteries

Cell type Lead-acid battery Lithium-iron phosphate batteries Lithium titanate battery
Rated voltage 2.0V 3.2V 2.3V
Mass specific energy 30-45 Wh/kg 100-170 Wh/kg 75-100 Wh/kg
Volume specific energy 65-80 Wh/L 250-400 Wh/kg 140~200 Wh/kg
Suitable temperature 10-50℃ -20-55℃ -50~60℃
Charging time 6~10hours 2-3hours 6-15minutes
Cycle life 300-500times 2000-3000times >30000 times
The low-temperature performance -20℃ charging: not available -20℃ charging: not available -20℃ charging: >85%
Charge discharge rate -20℃ discharge: not available -20℃ discharge: =70% -20℃ discharge: >85%
Security 0.1-0.2C 0.3-2C 6-10C
Environmental protection security good Very safe
Lead pollution Environment friendly Environment friendly

LTO Advantages

LTO material has higher electric potential with lithium metal, avoiding lithium dendrite during battery overcharging, and has better safety and stability. Meanwhile, it has a three-dimensional lithium-ion transmission channel, which can charge and discharge at a high rate; complete charging and discharging from extremely low temperature-50°C to ultra-high temperature of 60°C can be realized.

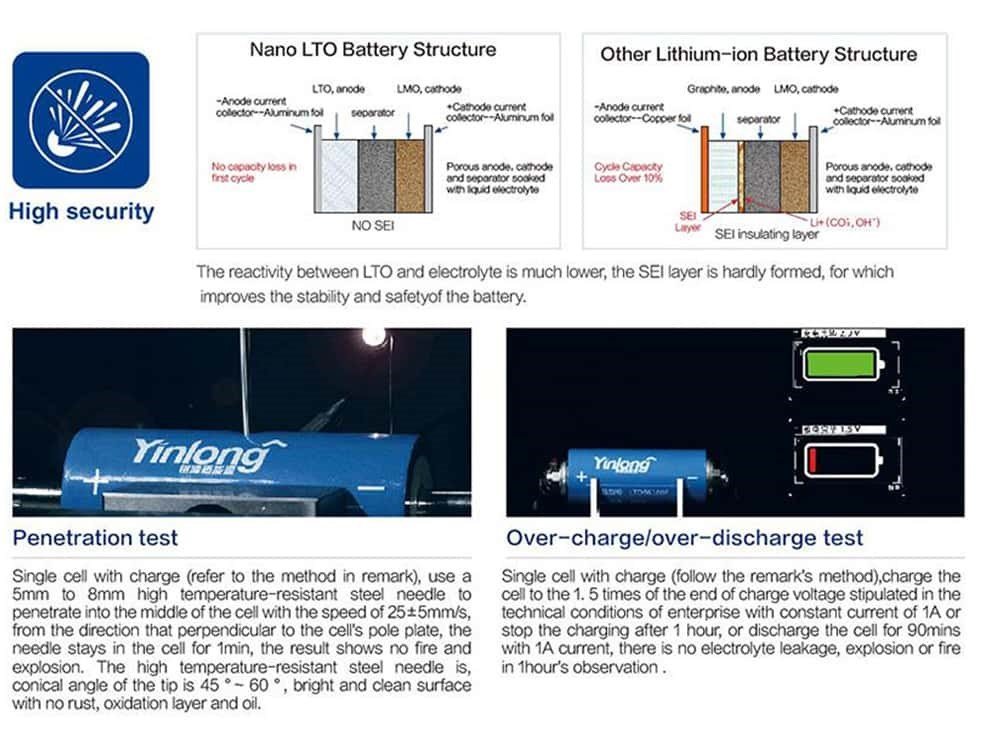

High Security

Results show that The LTO titanium batteries don’t cause fire or explosion after penetration, electric drill, cutting, and other tests.

Remark: This is a professional test. Never imitate!
